Digital Inspection Camera: Motorized Operated Well-Vu Vision System

15" COMMAND CONSOLE

PRO SERIES MOTORIZED WELL-VU SYSTEM WITH FISHEYE AND DOWNVIEW HEAD AND 15" DIGITAL VIDEO COMMAND CONSOLE (DVCC)

(Model #: WVM1000PRO, WVM1250PRO, WVM1500PRO)

CABLE LENGTH: 1000, 1250 & 1500 feet
CAMERA SPECS: 1 1/2” OD, high resolution, 1 lux 1/3” CCD, 550 line resolution. 180° Fisheye lens on the camera allows you to see the sides and down at the same time.
LIGHT SOURCE: 18 LED white lights emitted at a 22° angle to eliminate problems with particle reflection
DVCC: Digital Video Command Console 15”
VIDEO OUT: Standard NTSC format
POWER SOURCE: 12VDC
CLAMP-ON OSD: (On-Screen Display Encoder), feet or meters display
GPS DATA PORT: Allows for connection of many GPS unit to put Lat/Lon, Time and date stamp on video
SHIPPING WEIGHT: 300 (100 lbs), 500 (115 lbs), 700 (125 lbs), 1000 (135 lbs)

standard down view

Standard Down view camera

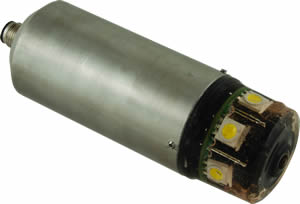

fish eye view

fish eye camera

(Model #: WVM1000C, WVM1250C, WVM1500C)

A full turn key system including the new digital video control console (DVCC) and detachable camera head.

CABLE LENGTH: 1000, 1250 & 1500 feet
CAMERA SPECS: 1 1/2” OD, high resolution, 1 lux 1/3” CCD, 550 line resolution
LIGHT SOURCE: 18 LED white lights emitted at a 22° angle to eliminate problems with particle reflection
POWER SOURCE: 12VDC
VIDEO OUT: Standard NTSC format
BATTERY & CHARGER: 12VDC 7ah sealed lead-acid battery, 12VDC charger
MONITOR: 7” LCD (included)
CLAMP-ON OSD: (On-Screen Display Encoder), feet or meters display
GPS DATA PORT: Allows for connection of many GPS unit to put Lat/Lon, Time and date stamp on video

7" cOMMAND CONSOLE
